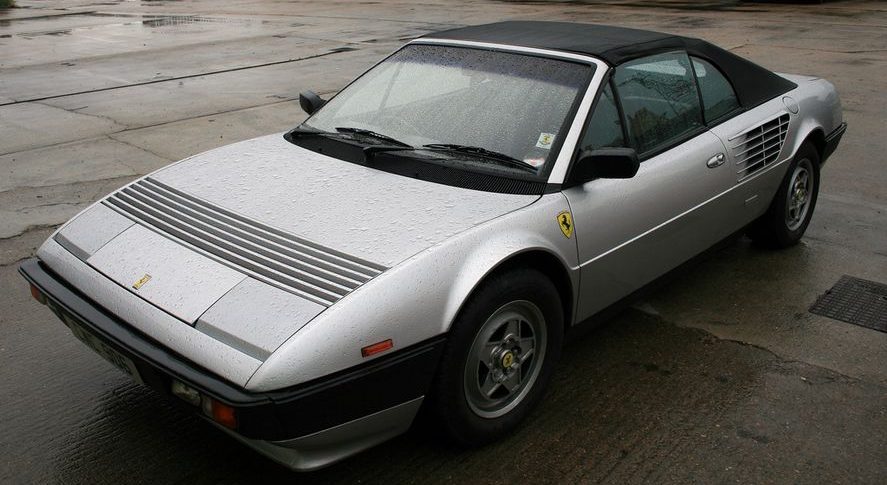

Ferrari Mondial – 1980

ENGINE

Typerear, transverse, 90 degree V8
Bore/Stroke81 X 71 mm
Unitary Displacement365.86 cc
Total Displacement2926.90 cc
Compression ratio8.8 : 1
Maximum power157 KW (214 hp) at 6600 rpm
Power Per Litre73 hp/l
Maximum Torque243 Nm (24.8 kgm) at 4600 rpm
Valve ActutationTwin overhead camshafts per bank, two valves per cylinder
Fuel feedBosch k-Jetronic injection
IgnitionSingle spark plug per cylinder, Electronic
Lubricationwet sump
ClutchSingle-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs over telescopic shock absorbers, anti-roll bar
Rear SuspensionIndependent, unequal-length wishbones, coil springs over telescopic shock absorbers, anti-roll bar
BrakesDiscs
Transmission5-speed + reverse
Steeringrack and pinion
Fuel Tank084
Front tyres240/55 VR 390
Rear tyres240/55 VR 390

BODYWORK

Type2+2 coupe
Length4580 mm
Width1790 mm
Height1250 mm
Wheelbase2650 mm
Front Track1495 mm
Rear Track1517 mm
Weight1445 kg (dry)

PERFORMANCE

Top Speed230 Km/h
Acceleration 0-100 KM/H-
0-400 M15 sec
0-1000 M28 sec
