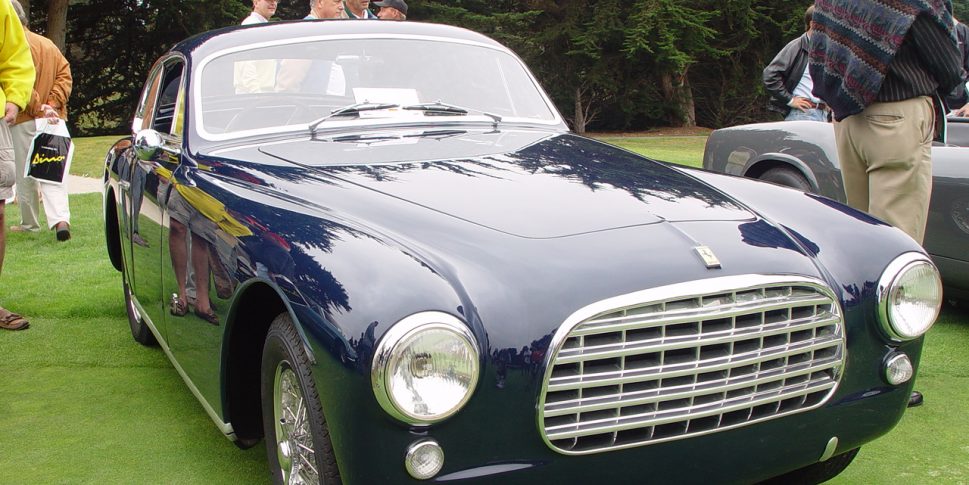

Ferrari 340 America – 1950

ENGINE

Engine TypeV12
Total Displacement4101.66 cc
Unitary Displacement341.80 cc
Maximum Power162 kW (220 hp) at 6,000 rpm
Bore/Stroke80 X 68 mm
Compression ratio8 : 1
Power Per Litre54 hp/l
Valve ActuationSingle overhead camshaft per bank, two valves per cylinder
Fuel feedthree Weber 40 DCF carburettors
IgnitionSingle spark plug per cylinder, two coils
Lubricationdry sump
Clutchsingle-plate



CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, transverse leaf spring, Houdaille hydraulic shock absorbers
Rear SuspensionLive axle, semi-elliptic springs, Houdaille hydraulic shock absorbers,
BrakesDrums
Transmission5-speed + reverse
SteeringWorm and Sector
Fuel Tank135
Front tyres6.40 X 15
Rear tyres6.40 X 15



BODYWORK

Typespider, berlinetta, coupe, 2+2 or Two-seater
Length-
Width-
Height-
Wheelbase2420 mm
Front Track1278 mm
Rear Track1250 mm
Weight900 kg (dry, berlinetta)



PERFORMANCE

Top Speed240 km/h
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
