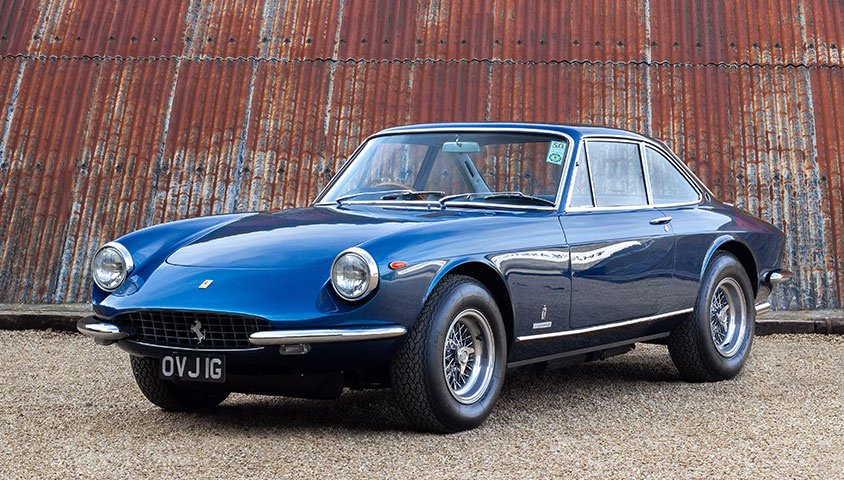

Ferrari 365 GTC – 1968

ENGINE

TypeFront, Longitudinal 60degree V12
Bore/Stroke81 X 71 mm
Unitary Displacement365.86 cc
Total Displacement4390.35 cc
Compression ratio8.8 : 1
Maximum power235KW (320 hp) at 6600 rpm
Power Per Litre73 hp/l
Valve ActutationSingle overhead camshaft per bank, Two valves per cylinder
Fuel feedThree weber 40 DFI/5 carburettors
IgnitionSingle spark plug per cylinder, Two coils
LubricationWet sump
ClutchSingle-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs over telescopic shock absorbers, anti-roll bar
Rear SuspensionIndependent, unequal-length wishbones, coil springs over telescopic shock absorbers, anti-roll bar
BrakesDiscs
Transmission5-speed + reverse
SteeringWorm and roller
Fuel Tank90
Front tyres205 X 14
Rear tyres205 X 14

BODYWORK

Typetwo seater coupe
Length4470 mm
Width1670 mm
Height1300 mm
Wheelbase2400 mm
Front Track1401 mm
Rear Track1417 mm
Weight1350 kg (dry)

PERFORMANCE

Top Speed250 Km/h
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
