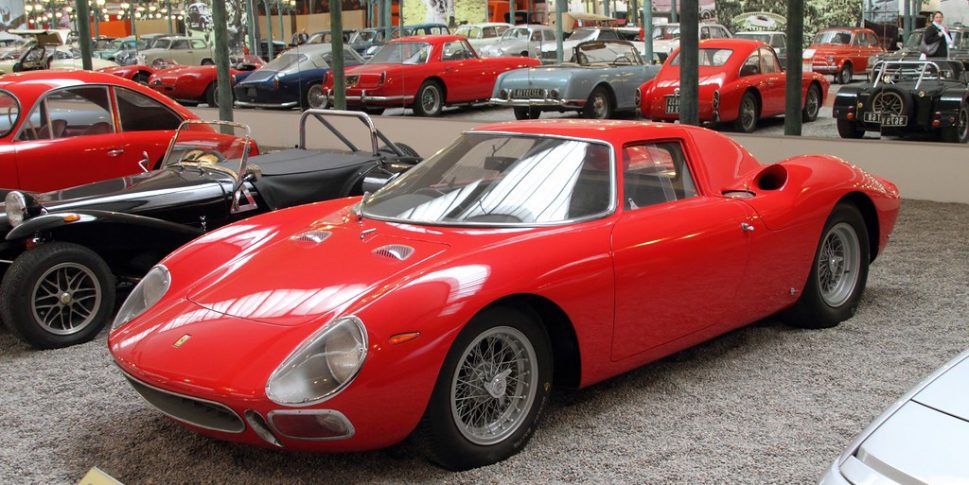

Ferrari 250 LM – 1963

ENGINE

Typefront, longitudinal V12
Bore/Stroke77 X 58.8 mm
Unitary Displacement273.81 cc
Total Displacement3285.72 cc
Compression ratio9.7 : 1
Maximum power235 KW (320 hp) at 7500 rpm
Power Per Litre97 hp/l
Valve ActutationSingle overhead camshafts per bank, two valves per cylinder
Fuel feedsix Weber 38/40 DCN carburettors
Ignitionsingle spark plug per cylinder, two coils
Lubricationdry sump
Clutchsingle-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bars
Rear SuspensionIndependent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bars
BrakesDiscs
Transmission5-speed + reverse
Steeringrack-and-pinion
Fuel Tank130 litres
Front tyres5.50 X 15
Rear tyres7.00 X 15

BODYWORK

Typetwo seater, berlinetta
Length4090 mm
Width1700 mm
Height1115 mm
Wheelbase2400 mm
Front Track1350 mm
Rear Track1340 mm
Weight820 kg (dry)

PERFORMANCE

Top Speed287 km/h
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
