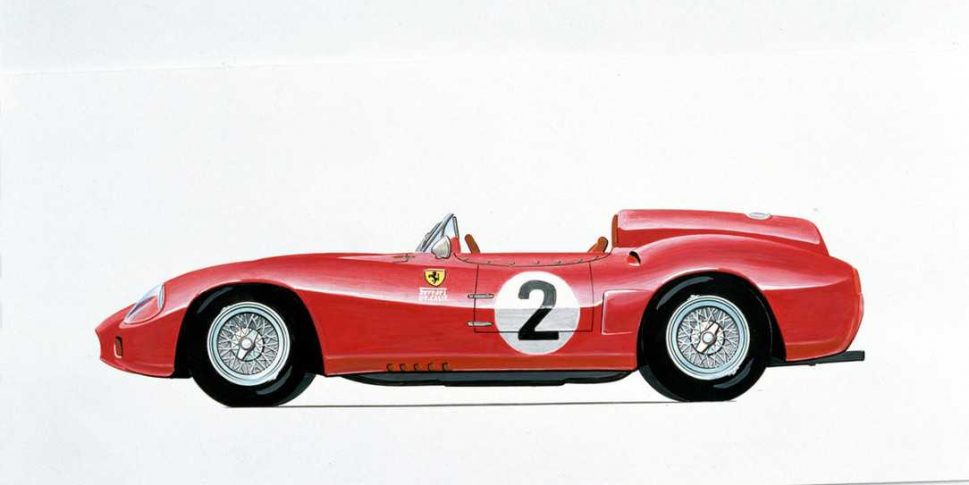

Ferrari 412 S – 1958

ENGINE

Engine Typefront, longitudinal V12
Total Displacement4023.32 cc
Unitary Displacement335.27 cc
Maximum Power318 kW (432hp) at 8000 rpm
Bore/Stroke77 X 72 mm
Compression ratio9.9 : 1
Power Per Litre107 hp/l
Valve Actuationtwin overhead camshaft per bank, two valves per cylinder
Fuel feedsix weber 42 DCN carburettors
Ignitiontwin spark plugs per cylinder, two coils
Lubricationdry sump
Clutchmulti-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs, hydraulic shock absorbers.
Rear Suspensionde Dion, twin radius arms, transverse leaf spring, hydraulic shock absorbers.
BrakesDrums
Transmission4-speed + reverse
SteeringWorm and Sector
Fuel Tank196 litres
Front tyres6.0 X 16
Rear tyres7.0 X 16

BODYWORK

Typetwo-seater, spider
Length-
Width-
Height-
Wheelbase2350 mm
Front Track1328 mm
Rear Track1310 mm
Weight-

PERFORMANCE

Top Speed-
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
