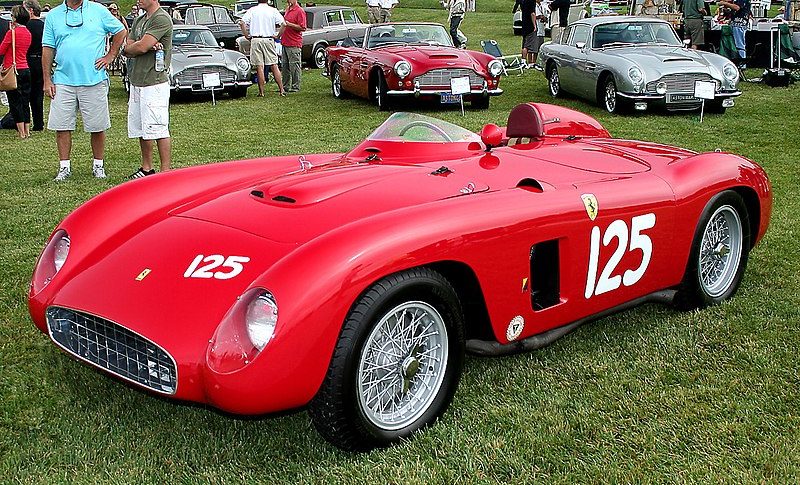

Ferrari 500 TR – 1956

ENGINE

Engine Typefront, longitudinal in-line four
Total Displacement1984.86 cc
Unitary Displacement496.21 cc
Maximum Power132 kW (180 hp) at 7000 rpm
Bore/Stroke90 X 78 mm
Compression ratio8.5 : 1
Power Per Litre91 hp/l
Valve Actuationtwin overhead camshafts per bank, two valves per cylinder
Fuel feedtwo weber 40 DCO/3 carburettors
Ignitiontwo spark plugs per cylinder, two coils
Lubricationdry sump
Clutchtwin-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil spring, hydraulic shock absorbers
Rear Suspensionlive axle, coil springs, hydraulic shock absorbers
BrakesDrums
Transmission4-speed + reverse
SteeringWorm and Sector
Fuel Tank120 litres
Front tyres5.50 X 16
Rear tyres6.00 X 16

BODYWORK

TypeTwo-seater, Spider
Length-
Width-
Height-
Wheelbase2250 mm
Front Track1308 mm
Rear Track1250 mm
Weight680 kg (dry)

PERFORMANCE

Top Speed245 km/h
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
