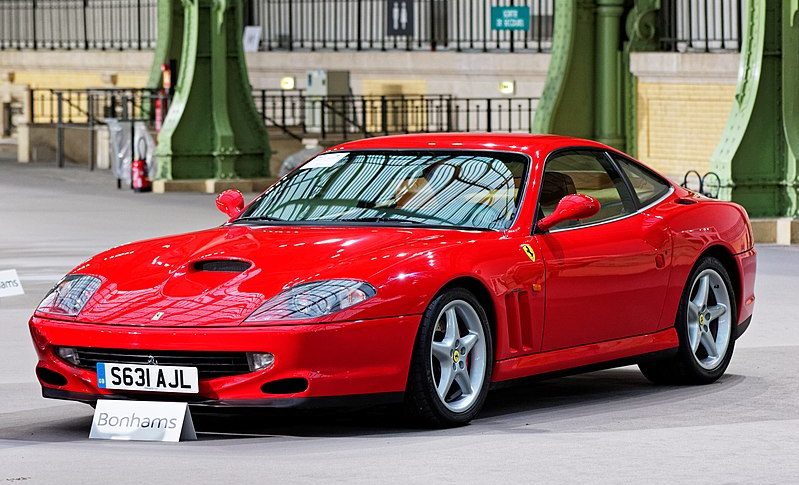

Ferrari 550 Maranello – 1996

ENGINE

TypeFront, longitudinal 65 degree V12
Bore/Stroke88 X 75 mm
Unitary Displacement456.16 cc
Total Displacement5473.91 cc
Compression ratio10.8 : 1
Maximum power357 KW (485 hp) at 7000 rpm
Power Per Litre89 hp/l
Maximum Torque 569 Nm (58 kgm) at 5000 rpm
Valve ActutationTwin overhead camshafts per bank, five valves per cylinder
Fuel feedBosch Motronic M2.7 electronic injection
IgnitionBosch Motronic M2.7 static electronic, single spark plug per cylinder
Lubricationdry sump
Clutchsingle-plate

CHASSIS

FrameTubular Steel
Front SuspensionIndependent, unequal-length wishbones, coil springs over gas-filled telescopic shock absorbers, anti-roll bar
Rear SuspensionIndependent, unequal-length wishbones, coil springs over gas-filled telescopic shock absorbers, anti-roll bar
BrakesDiscs
Transmission6-speed + reverse
Steeringrack and pinion
Fuel Tank114 Litres
Front tyres255/40 ZR 18
Rear tyres295/35 ZR 18

BODYWORK

Typetwo-seater berlinetta
Length4550 mm
Width1935 mm
Height1277 mm
Wheelbase2500 mm
Front Track1632 mm
Rear Track1586 mm
Weight1690 kg (kerb)

PERFORMANCE

Top Speed320 km/h
Acceleration 0-100 KM/H4.4 sec
0-400 M12.5 sec
0-1000 M22.5 sec
