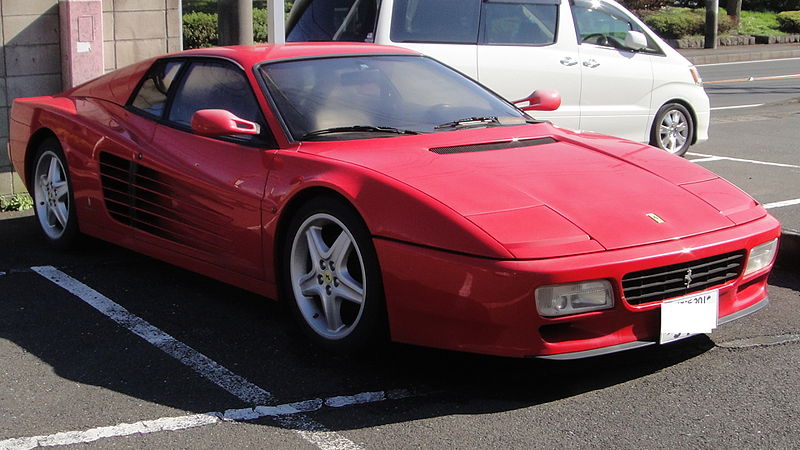

Ferrari 512 TR – 1991

ENGINE

Typerear, longitudinal flat-12
Bore/Stroke82 X 78 mm
Unitary Displacement411.92 cc
Total Displacement4943.03 cc
Compression ratio10 : 1
Maximum power315 KW (428 hp) at 6750 rpm
Power Per Litre87 hp/l
Maximum Torque 491 Nm (50 kgm) at 5500 rpm
Valve ActutationTwin overhead camshafts per bank, four valves per cylinder
Fuel feedBosch Motronic M2.7 electronic injection
IgnitionBosch M2.7 Static electronic, single spark plug per cylinder
Lubricationdry sump
ClutchSingle-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs, gas-filled telescopic shock absorbers, anti-roll bar
Rear SuspensionIndependent, unequal-length wishbones, coil springs, twin gas-filled telescopic shock absorbers each side, anti-roll bar
BrakesDiscs
Transmission5-speed + reverse
Steeringrack and pinion
Fuel Tank100
Front tyres235/40 ZR 18
Rear tyres295/35 ZR 18

BODYWORK

Typetwo seater Berlinetta
Length4480 mm
Width1976 mm
Height1135 mm
Wheelbase2550 mm
Front Track1532 mm
Rear Track1644 mm
Weight1473 kg (dry)

PERFORMANCE

Top Speed313.8 km/h
Acceleration 0-100 KM/H4.8 sec
0-400 M-
0-1000 M22.9 sec
