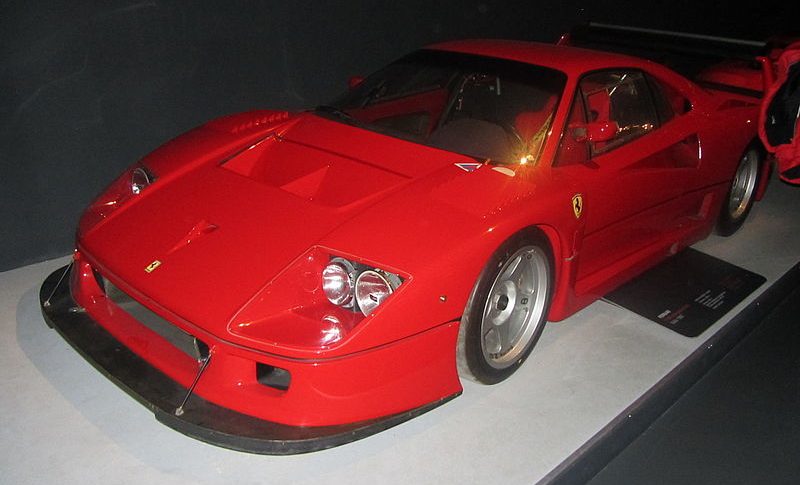

Ferrari F40 Competizione – 1989

ENGINE

Typerear, longitudinal, 90 degree V8
Bore/Stroke82 X 69.5 mm
Unitary Displacement367.03 cc
Total Displacement2936.25 cc
Compression ratio7.7 : 1
Maximum power515 KW (700 hp) at 8100 rpm
Power Per Litre238 hp/l
Maximum Torque-
Valve ActutationTwin overhead camshafts per bank, four valves per cylinder
Fuel feedWeber-Marelli electronic injection, Twin turbos
IgnitionWeber-Marelli electronic, single spark plug per cylinder
Lubricationdry sump
Clutchmulti-plate

CHASSIS

Frametubular steel and composite elements
Front SuspensionIndependent, unequal-length wishbones, coil springs over telescopic shock absorbers, anti-roll bar
Rear SuspensionIndependent, unequal-length wishbones, coil springs over telescopic shock absorbers, anti-roll bar
BrakesDiscs
Transmission5-speed + reverse
Steeringrack and pinion
Fuel Tank120
Front tyres24.5-12.5-17
Rear tyres27.5-14.5-17

BODYWORK

Typetwo seater Berlinetta
Length4535 mm
Width1980 mm
Height1150 mm
Wheelbase2450 mm
Front Track1580 mm
Rear Track1545 mm
Weight1040 kg (with liquids)

PERFORMANCE

Top Speed367 km/h
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
