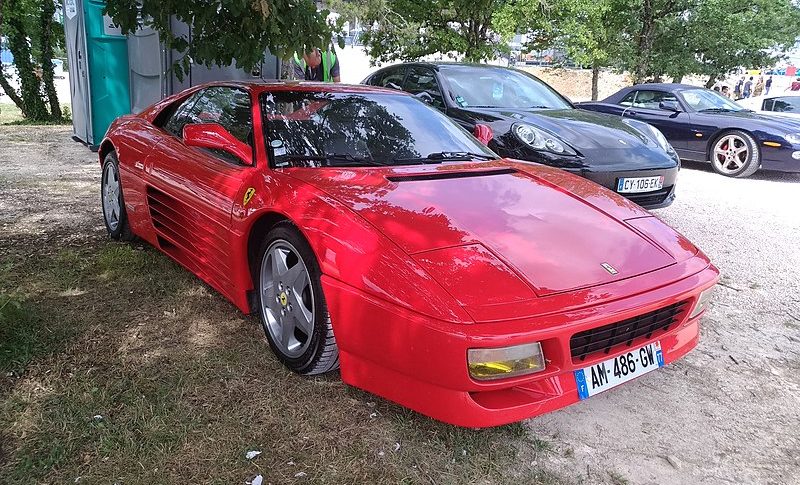

Ferrari 348 TB – 1989

ENGINE

Typerear, longitudinal, 90 degree V8
Bore/Stroke85 X 75 mm
Unitary Displacement425.59 cc
Total Displacement3404.70 cc
Compression ratio10.4 : 1
Maximum power221 KW (300 hp) at 7200 rpm
Power Per Litre88 hp/l
Maximum Torque324 Nm (33 kgm) at 4200 rpm
Valve ActutationTwin overhead camshafts per bank, four valves per cylinder
Fuel feedBosch Motronic M2.5electronic injection
IgnitionBosch M2.5 Static electronic, single spark plug per cylinder
Lubricationdry sump
ClutchTwin-plate

CHASSIS

Framesteel monococcque with tubular steel rear sub-frame
Front SuspensionIndependent, unequal-length wishbones, coil springs over gas-filled telescopic shock absorbers, anti-roll bar
Rear SuspensionIndependent, unequal-length wishbones, coil springs over gas-filled telescopic shock absorbers, anti-roll bar
BrakesDiscs
Transmission5-speed + reverse
Steeringrack and pinion
Fuel Tank95
Front tyres215/50 ZR 17
Rear tyres255/50 ZR 17

BODYWORK

Typetwo seater Berlinetta
Length4230 mm
Width1894 mm
Height1170 mm
Wheelbase2450 mm
Front Track1502 mm
Rear Track1578 mm
Weight1393 kg (dry)

PERFORMANCE

Top Speedover 275 km/h
Acceleration 0-100 KM/H5.6 sec
0-400 M-
0-1000 M24.7 sec
