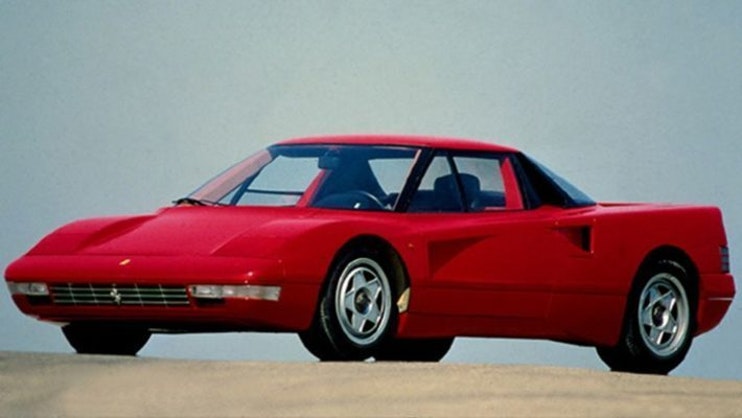

Ferrari 408 4RM – 1987

ENGINE

Typerear, longitudinal, 90 degree V8
Bore/Stroke93 X 73.6 mm
Unitary Displacement499.96 cc
Total Displacement3999.66 cc
Compression ratio9.8 : 1
Maximum power221 KW (300 hp) at 6250 rpm
Power Per Litre75 hp/l
Maximum Torque373 Nm (38 kgm) at 4500 rpm
Valve ActutationTwin overhead camshafts per bank, four valves per cylinder
Fuel feedWeber-Marelli electronic injection
Ignitionelectronic, single spark plug per cylinder
Lubricationdry sump
Clutchtwin-plate

CHASSIS

Framebox-section stainless steel monocoque
Front SuspensionIndependent, unequal-length wishbones, coil springs over telescopic shock absorbers, anti-roll bar
Rear SuspensionIndependent, unequal-length wishbones, coil springs over telescopic shock absorbers, anti-roll bar
BrakesDiscs
Transmission5-speed + reverse
Steeringrack and pinion
Fuel Tank120
Front tyres225/50 VR 16
Rear tyres255/50 VR 16

BODYWORK

Typetwo seater Berlinetta
Length4220 mm
Width1885 mm
Height1200 mm
Wheelbase2550 mm
Front Track1580 mm
Rear Track1585 mm
Weight1343 kg (with liquids)

PERFORMANCE

Top Speed-
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
