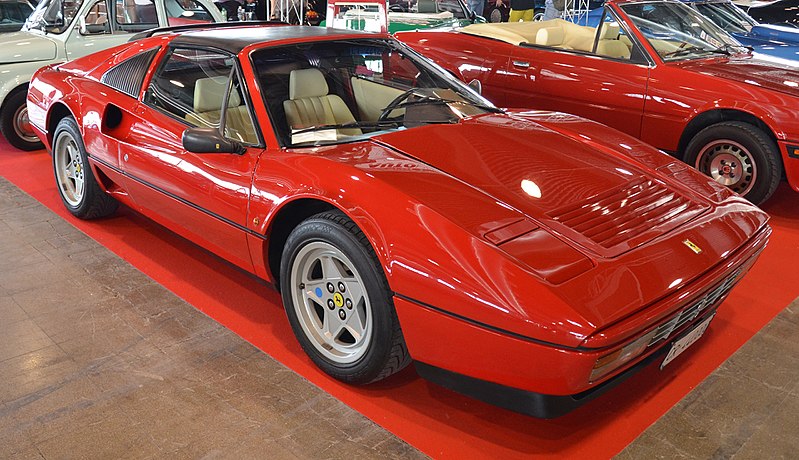

Ferrari GTS Turbo – 1986

ENGINE

Typerear, transverse, 90 degree V8
Bore/Stroke66.8 X 71 mm
Unitary Displacement248.83 cc
Total Displacement1990.64 cc
Compression ratio7.5 : 1
Maximum power187 KW (254 hp) at 6500 rpm
Power Per Litre128 hp/l
Maximum Torque328 Nm (33.5 kgm) at 4100 rpm
Valve ActutationTwin overhead camshafts per bank, four valves per cylinder
Fuel feedBosch k-jetronic mechanical injection
IgnitionMarelli Microplex electronic, single spark plug per cylinder
Lubricationwet sump
ClutchSingle-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs over telescopic shock absorbers, anti-roll bar
Rear SuspensionIndependent, unequal-length wishbones, coil springs over telescopic shock absorbers, anti-roll bar
BrakesDiscs
Transmission5-speed + reverse
Steeringrack and pinion
Fuel Tank74
Front tyres205/55 VR 16
Rear tyres225/50 VR 16

BODYWORK

Typetwo seater targa top
Length4255 mm
Width1730 mm
Height1128 mm
Wheelbase2350 mm
Front Track1485 mm
Rear Track1465 mm
Weight1275 kg (dry)

PERFORMANCE

Top Speed253 km/h
Acceleration 0-100 KM/H6.3 sec
0-400 M14.3 sec
0-1000 M25.7 sec
