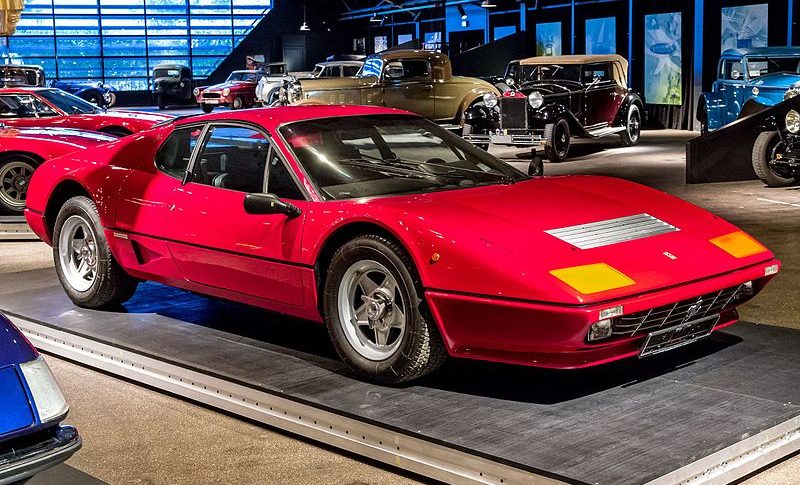

Ferrari 512 BB – 1976

ENGINE

TypeRear, Longitudinal 180degree V12
Bore/Stroke82 X 78 mm
Unitary Displacement411.92 cc
Total Displacement4943.04 cc
Compression ratio9.2 : 1
Maximum power265 KW (360 hp) at 6800 rpm
Power Per Litre73 hp/l
Maximum Torque-
Valve ActutationTwin overhead camshafts per bank, two valves per cylinder
Fuel feedfour weber 40 IF3C carburettors
IgnitionSingle spark plug per cylinder, Electronic
Lubricationdry sump
ClutchTwin-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar
Rear SuspensionIndependent, unequal-length wishbones, coil springs, twin telescopic shock absorbers each side, anti-roll bar
BrakesDiscs
Transmission5-speed + reverse
Steeringrack and pinion
Fuel Tank0120
Front tyres215/70 VR 15
Rear tyres215/70 VR 15

BODYWORK

Typetwo-seater, berlinetta
Length4400 mm
Width1830 mm
Height1120 mm
Wheelbase2500 mm
Front Track1500 mm
Rear Track1563 mm
Weight1400 kg (dry)

PERFORMANCE

Top Speed302 Km/h
Acceleration 0-100 KM/H-
0-400 M13.7 sec
0-1000 M24.0 sec
