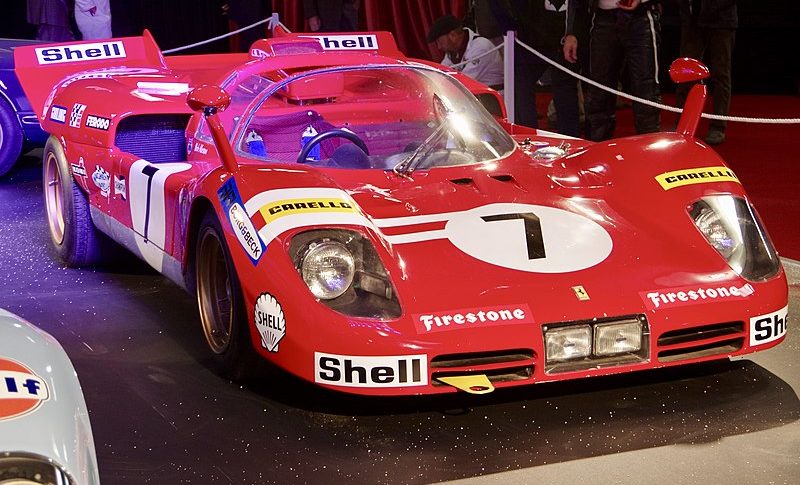

Ferrari 512 S – 1970

ENGINE

Typerear, Longitudinal 60 degree V12
Bore/Stroke87 X 70 mm
Unitary Displacement416.13 cc
Total Displacement4993.53 cc
Compression ratio11.5 : 1
Maximum power404 KW (550 hp) at 8500 rpm
Power Per Litre110 hp/l
Maximum Torque-
Valve ActutationTwin overhead camshaft per bank, Four valves per cylinder
Fuel feedLucas Indirect injection
IgnitionElectronics, Single spark plug per cylinder
LubricationDry sump
ClutchMulti-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs,telescopic shock absorbers, anti-roll bar
Rear SuspensionIndependent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar
BrakesDiscs
Transmission5-speed + reverse
Steeringrack and pinion
Fuel Tank0120
Front tyres4.25-11.50-15
Rear tyres6.00-14.50-15

BODYWORK

Typetwo seater Berlinetta
Length4060 mm
Width2000 mm
Height972 mm
Wheelbase2400 mm
Front Track1518 mm
Rear Track1511 mm
Weight840 kg (dry)

PERFORMANCE

Top Speed340 Km/h
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
