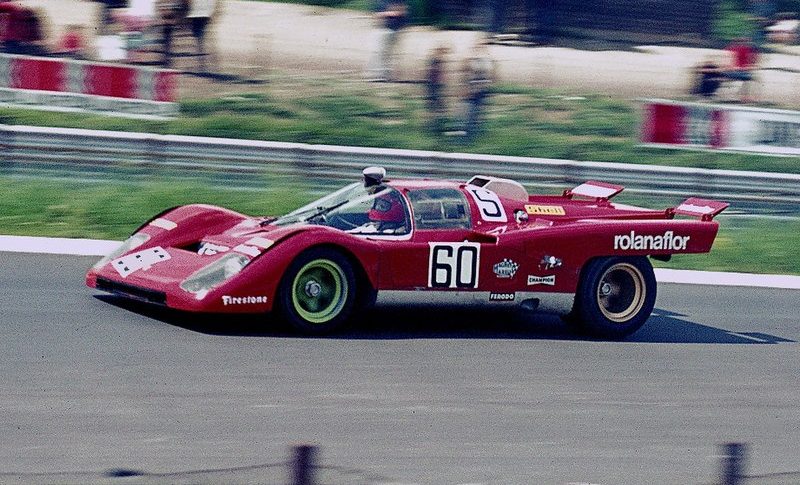

Ferrari 512 M – 1970

ENGINE

Typerear, Longitudinal 60 degree V12
Bore/Stroke87 X 70 mm
Unitary Displacement416.13 cc
Total Displacement4993.53 cc
Compression ratio11.5 : 1
Maximum power449 KW (610 hp) at 9000 rpm
Power Per Litre122 hp/l
Maximum Torque-
Valve ActutationTwin overhead camshaft per bank, Four valves per cylinder
Fuel feedLucas Indirect injection
IgnitionElectronics, Single spark plug per cylinder
LubricationDry sump
ClutchMulti-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs,telescopic shock absorbers, anti-roll bar
Rear SuspensionIndependent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar
BrakesDiscs
Transmission5-speed + reverse
Steeringrack and pinion
Fuel Tank0120
Front tyres4.25-11.50-15
Rear tyres6.00-14.50-15

BODYWORK

Typetwo seater Berlinetta
Length4180 mm
Width2015 mm
Height985 mm
Wheelbase2400 mm
Front Track1518 mm
Rear Track1511 mm
Weight815 kg (dry)

PERFORMANCE

Top Speed310 Km/h
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
