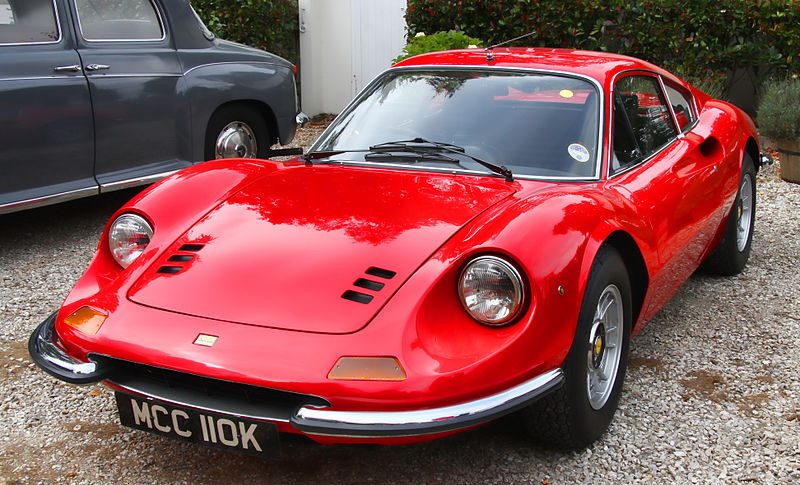

Ferrari Dino 246 GT – 1969

ENGINE

TypeRear, transverse, 65degree V6
Bore/Stroke92.5X 60 mm
Unitary Displacement403.20 cc
Total Displacement2419.20 cc
Compression ratio9 : 1
Maximum power143KW (195 hp) at 7600 rpm
Power Per Litre81 hp/l
Maximum Torque-
Valve ActutationTwin overhead camshafts per bank, Two valves per cylinder
Fuel feedthree weber 40 DCN F/7 carburettors
IgnitionSingle spark plug per cylinder, Single coil
LubricationWet sump
ClutchSingle-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs telescopic shock absorbers, anti-roll bar
Rear SuspensionIndependent, unequal-length wishbones, coil springs telescopic shock absorbers, anti-roll bar
BrakesDiscs
Transmission5-speed + reverse
Steeringrack and pinion
Fuel Tank65
Front tyres205/70 VR 14
Rear tyres205/70 VR 14

BODYWORK

Typetwo seater berlinetta
Length4235 mm
Width1700 mm
Height1135 mm
Wheelbase2340 mm
Front Track1425 mm
Rear Track1430 mm
Weight1080 kg (dry)

PERFORMANCE

Top Speed235 Km/h
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M26.8 sec
