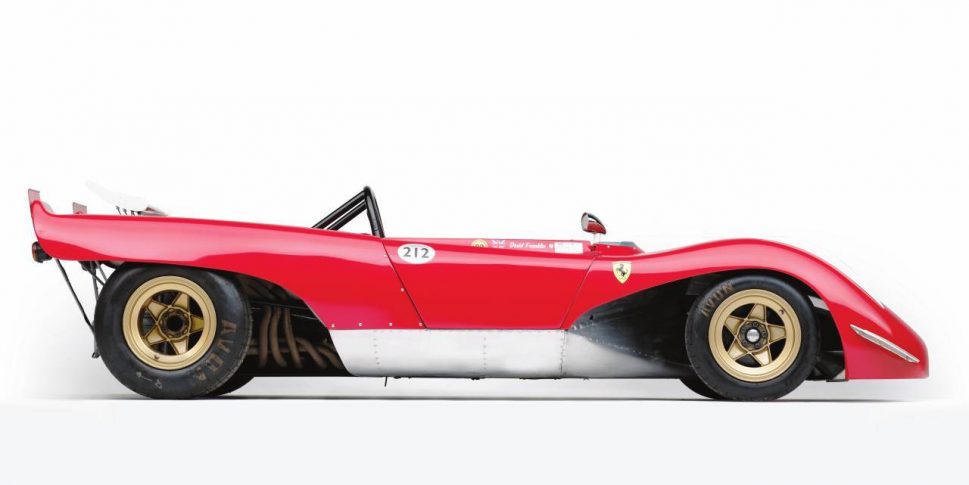

Ferrari 212 E – 1969

ENGINE

TypeRear, Longitudinal Flat-12
Bore/Stroke65 X 50 mm
Unitary Displacement165.91 cc
Total Displacement1990.98 cc
Compression ratio11 : 1
Maximum power221 KW (300 hp) at 11.800 rpm
Power Per Litre151 hp/l
Maximum Torque-
Valve ActutationTwin overhead camshaft per bank, Two valves per cylinder
Fuel feedLucas indirect injection
IgnitionSingle spark plug per cylinder, Single coil
LubricationDry sump
ClutchMulti-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar
Rear SuspensionIndependent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar
BrakesDiscs
Transmission5-speed + reverse
Steeringrack and pinion
Fuel Tank30
Front tyres5.00-10.00-13
Rear tyres6.00-14.00-13

BODYWORK

Typetwo seater spider
Length3800 mm
Width1980 mm
Height -
Wheelbase2340 mm
Front Track1377 mm
Rear Track1412 mm
Weight500 kg (dry)

PERFORMANCE

Top Speed250 Km/h
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
