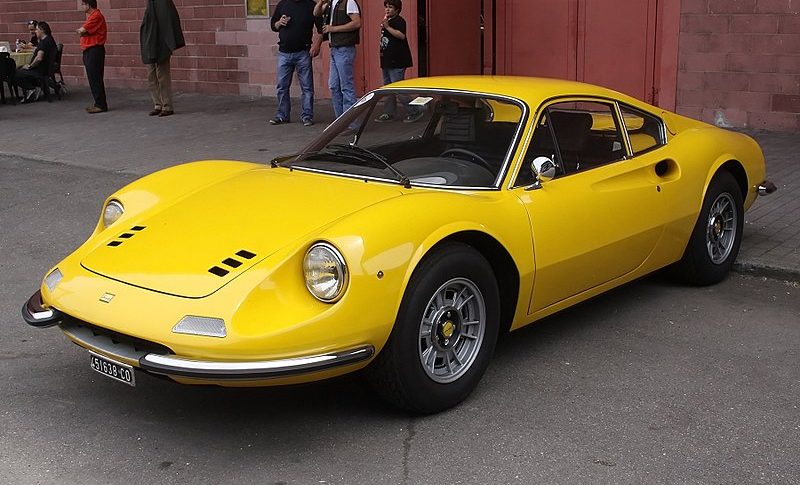

Ferrari Dino 206 GT – 1967

ENGINE

TypeRear, Transverse 65degree V6
Bore/Stroke86 X 57 mm
Unitary Displacement331.10 cc
Total Displacement1986.60 cc
Compression ratio9 : 1
Maximum power132 KW (180 hp) at 8000 rpm
Power Per Litre91 hp/l
Valve ActutationTwin overhead camshafts per bank, two valves per cylinder
Fuel feedThree weber 40 DCN f/1 carburettors
Ignitionsingle spark plugs per cylinder, Single coil
LubricationWet sump
Clutchsingle-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar
Rear SuspensionIndependent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar
BrakesDiscs
Transmission5-speed + reverse
Steeringrack and pinion
Fuel Tank65 litres
Front tyres185 VR 14
Rear tyres185 VR 14

BODYWORK

Typetwo seater berlinetta
Length4150 mm
Width1700 mm
Height1115 mm
Wheelbase2280 mm
Front Track1425 mm
Rear Track1400 mm
Weight900 kg (dry)

PERFORMANCE

Top Speed235 Km/h
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M27
