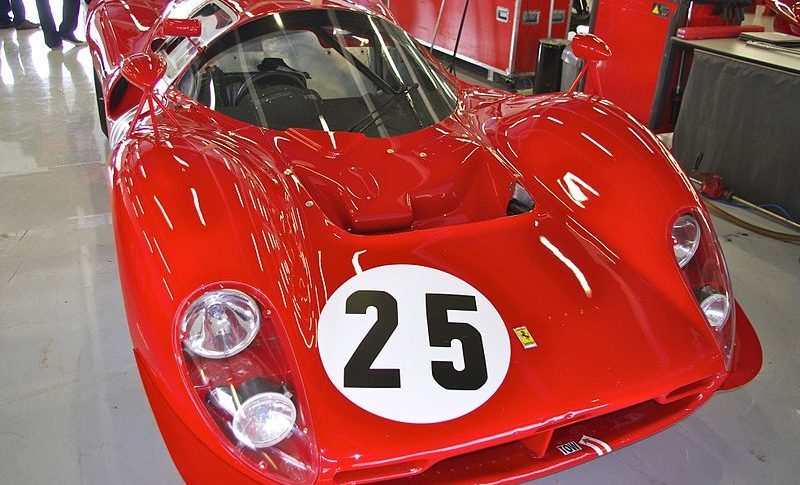

Ferrari 412 P – 1967

ENGINE

TypeRear, Longitudinal 60degree V12
Bore/Stroke77 X 71 mm
Unitary Displacement330.62 cc
Total Displacement3967.44 cc
Compression ratio11 : 1
Maximum power309 KW (420 hp) at 8000 rpm
Power Per Litre106 hp/l
Valve ActutationTwin overhead camshafts per bank, three valves per cylinder
Fuel feedSix weber 40 DCN/15 carburettors
IgnitionTwin spark plugs per cylinder, Two coils
LubricationDry sump
ClutchMulti-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar
Rear SuspensionIndependent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar
BrakesDiscs
Transmission5-speed + reverse
Steeringrack and pinion
Fuel Tank-
Front tyres5.50 X 15
Rear tyres7.00 X 15

BODYWORK

Typetwo seater spider. berlinetta
Length4170 mm
Width1780 mm
Height985 mm
Wheelbase2400 mm
Front Track1466 mm
Rear Track1484 mm
Weight835 kg (dry)

PERFORMANCE

Top Speed310 Km/h
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
