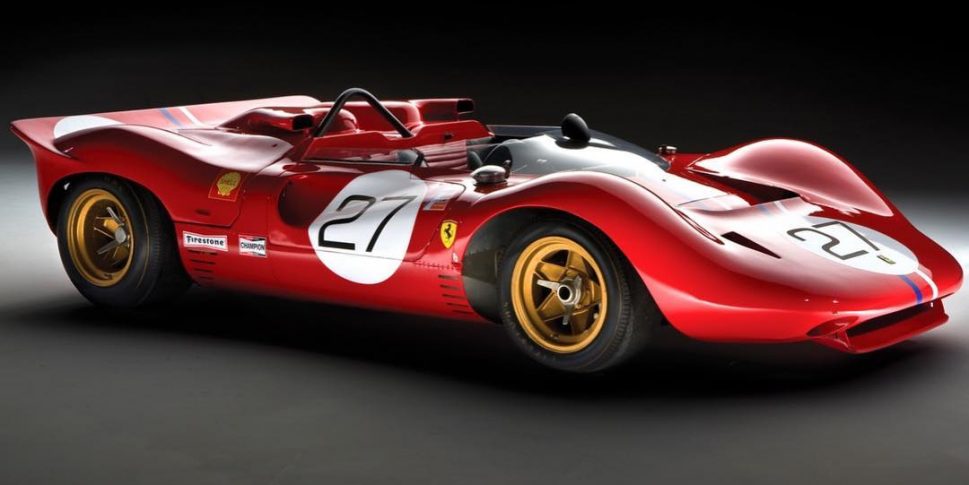

Ferrari 350 Can Am – 1967

ENGINE

Typerear, Longitudinal 60degree V12
Bore/Stroke79 X 71 mm
Unitary Displacement348.01 cc
Total Displacement4176.22 cc
Compression ratio11 : 1
Maximum power353 KW (320 hp) at 6600 rpm
Power Per Litre115 hp/l
Valve ActutationLucas indirect injection
Fuel feedtwin overhead camshaft per bank, three valves per cylinder
IgnitionTwin spark plugs per cylinder, Two coils
LubricationDry sump
ClutchMulti-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar
Rear SuspensionIndependent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar
BrakesDiscs
Transmission5-speed + reverse
Steeringrack and pinion
Fuel Tank-
Front tyres475/1030 X 15
Rear tyres600/1230 X 15

BODYWORK

Typetwo seater spider
Length3950 mm
Width1995 mm
Height940 mm
Wheelbase2400 mm
Front Track1488 mm
Rear Track1450 mm
Weight700 kg (dry)

PERFORMANCE

Top Speed315 Km/h
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
