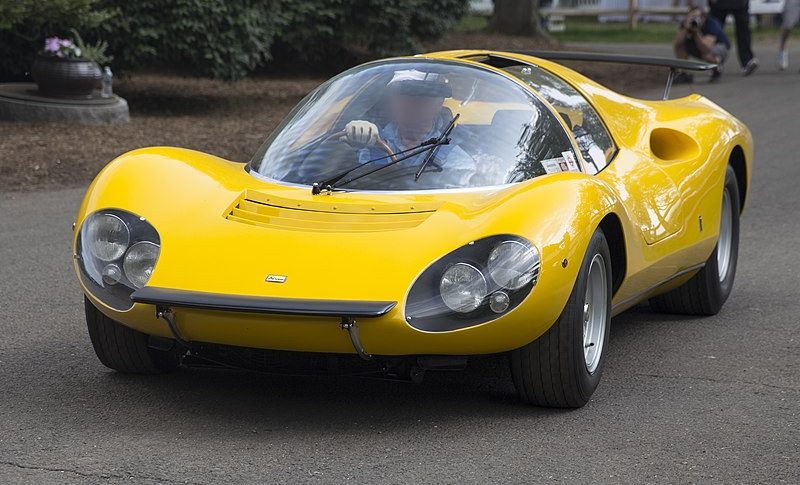

Ferrari Dino 206 S – 1966

ENGINE

TypeRear, longitudinal 65degree V6
Bore/Stroke86 X 57 mm
Unitary Displacement331.10 cc
Total Displacement1986.60 cc
Compression ratio11 : 1
Maximum power162 KW (220 hp) at 9000 rpm
Power Per Litre111 hp/l
Valve ActutationTwin overhead camshafts per bank, two valves per cylinder
Fuel feedLucas indirect injection
IgnitionSingle spark plug per cylinder, single coils
LubricationDry sump
ClutchTwin-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar
Rear SuspensionIndependent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar
BrakesDiscs
Transmission5-speed + reverse
SteeringRack and Pinion
Fuel Tank100 litres
Front tyres5.50 X 13
Rear tyres7.00 X 13

BODYWORK

Typetwo seater Berlinetta, Spider
Length3875 mm
Width1680 mm
Height985 mm (spider)
Wheelbase2280 mm
Front Track1392 mm
Rear Track1414 mm
Weight580 kg (dry)

PERFORMANCE

Top Speed270 Km/h
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
