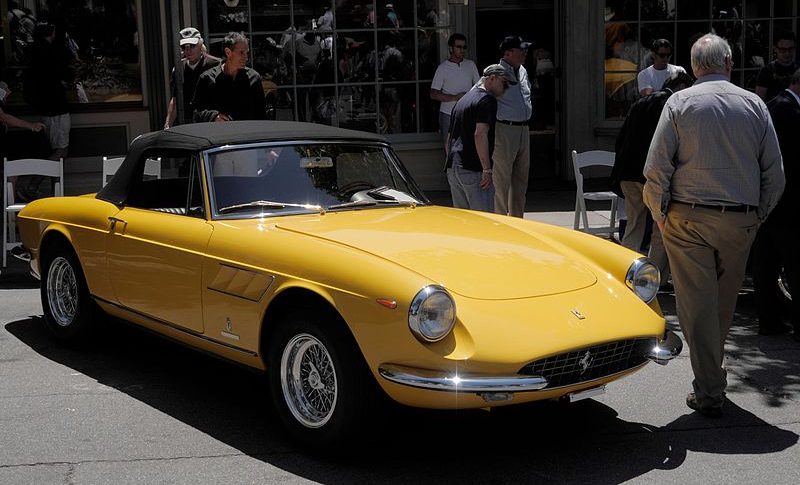

Ferrari 330 GTS – 1966

ENGINE

TypeFront, longitudinal 60degree V12
Bore/Stroke77 X 71mm
Unitary Displacement330.62 cc
Total Displacement3967.44 cc
Compression ratio8.8 : 1
Maximum power221 KW (300 hp) at 7000 rpm
Power Per Litre76 hp/l
Valve ActutationSingle overhead camshafts per bank, two valves per cylinder
Fuel feedThree weber 40 DCZ/6 or 40 DFI/2 Carburettors
IgnitionSingle spark plug per cylinder, Two coils
LubricationWet sump
ClutchSingle-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs over telescopic shock absorbers, anti-roll bar
Rear SuspensionIndependent, unequal-length wishbones, coil springs over telescopic shock absorbers, anti-roll bar
BrakesDiscs
Transmission5-speed + reverse
Steeringworm and roller
Fuel Tank90 litres
Front tyres205 X 14
Rear tyres205 X 14

BODYWORK

Typetwo seater Spider
Length4430 mm
Width1675 mm
Height1250 mm (spider)
Wheelbase2400 mm
Front Track1401 mm
Rear Track1417 mm
Weight1200 kg (dry)

PERFORMANCE

Top Speed242 Km/h
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
