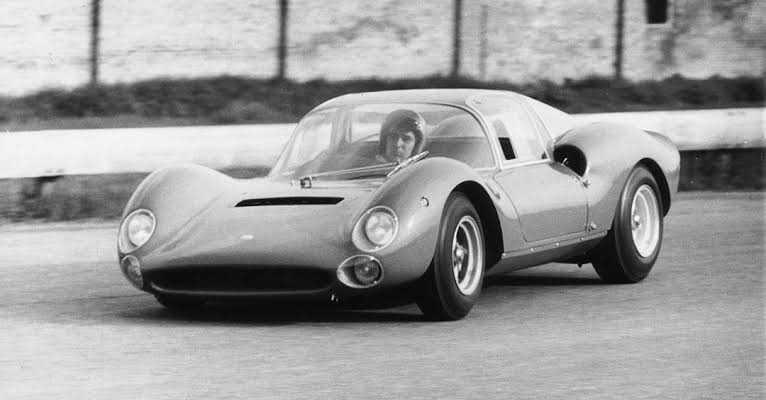

Ferrari Dino 166 P – 1965

ENGINE

TypeRear, longitudinal 65degree V12
Bore/Stroke77 X 57 mm
Unitary Displacement265.42 cc
Total Displacement1592.57 cc
Compression ratio11.5 : 1
Maximum power129 KW (175 hp) at 9000 rpm
Power Per Litre110 hp/l
Valve ActutationTwin overhead camshafts per bank, two valves per cylinder
Fuel feedThree Weber 40 DCN/2 carburettors
IgnitionTwin Plugs, two coils
LubricationDry sump
ClutchTwin-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar
Rear SuspensionIndependent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar
BrakesDiscs
Transmission5-speed + reverse
Steeringrack and pinion
Fuel Tank100 litres
Front tyres5.50 or 13
Rear tyres6.50 or 13

BODYWORK

Typetwo seater Berlinetta
Length3820 mm
Width1570 mm
Height960 mm
Wheelbase2280 mm
Front Track1392 mm
Rear Track1414 mm
Weight586 kg (dry)

PERFORMANCE

Top Speed-
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
