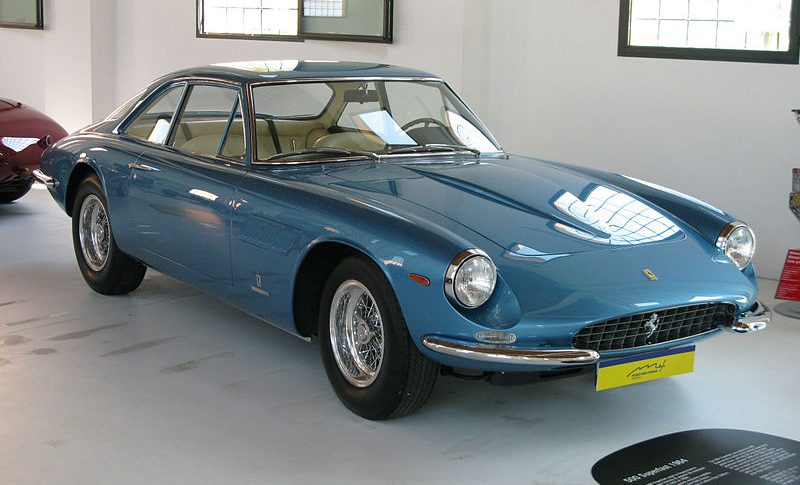

Ferrari 500 Superfast – 1964

ENGINE

Typefront, longitudinal V12
Bore/Stroke88 X 68 mm
Unitary Displacement413.58 cc
Total Displacement4962.96 cc
Compression ratio8.8 : 1
Maximum power294 KW (400 hp) at 6500 rpm
Power Per Litre81 hp/l
Valve ActutationSingle overhead camshafts per bank, two valves per cylinder
Fuel feedsix Weber 40 DCZ/6 carburettors
Ignitionsingle spark plug per cylinder, two coils
Lubricationwet sump
Clutchsingle-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar
Rear Suspensionlive axle, twin radius arms, semi-elliptic springs, coil springs over telescopic shock absorbers
BrakesDiscs
Transmission4-speed + overdrive + reverse
Steeringworm and sector
Fuel Tank100 litres
Front tyres205 X 15
Rear tyres205 X 15

BODYWORK

Typetwo seater coupe
Length4820 mm
Width1730 mm
Height1280 mm
Wheelbase2650 mm
Front Track1397 mm
Rear Track1389 mm
Weight1400 kg (dry)

PERFORMANCE

Top Speed280 km/h
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
