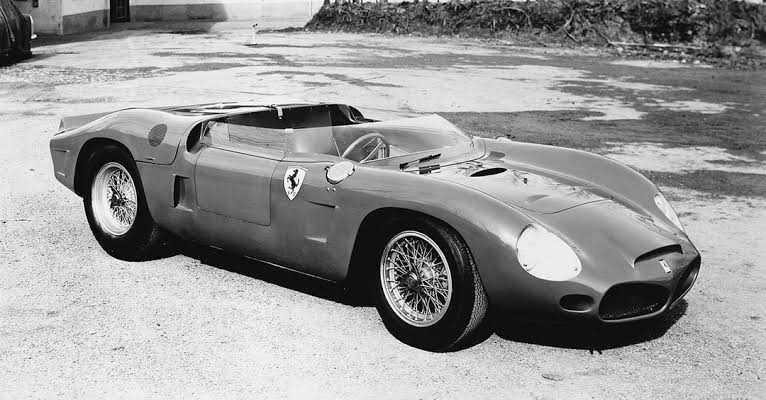

Ferrari 286 SP – 1962

ENGINE

Engine Typefront, longitudinal V6
Total Displacement2862.78 cc
Unitary Displacement477.13 cc
Maximum Power191 kW (260 hp) at 6800 rpm
Bore/Stroke90 X 75 mm
Compression ratio9.5 : 1
Power Per Litre91 hp/l
Valve Actuationsingle overhead camshafts per bank, two valves per cylinder
Fuel feedthree weber 42 DCN carburettors
Ignitionsingle spark plugs per cylinder, single coil
Lubricationdry sump
Clutchmulti-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs, telescopic shock absorbers, anti-roll bar
Rear SuspensionIndependent, unequal-length wishbones, coil springs, telescopic shock absorbers
BrakesDiscs
Transmission5-speed + reverse
Steeringrack and pinion
Fuel Tank-
Front tyres5.25 X 15
Rear tyres7.00 X 15

BODYWORK

Typetwo seater, spider
Length4060 mm
Width1480 mm
Height970 mm
Wheelbase2320 mm
Front Track-
Rear Track-
Weight620 kg (dry)

PERFORMANCE

Top Speed-
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
