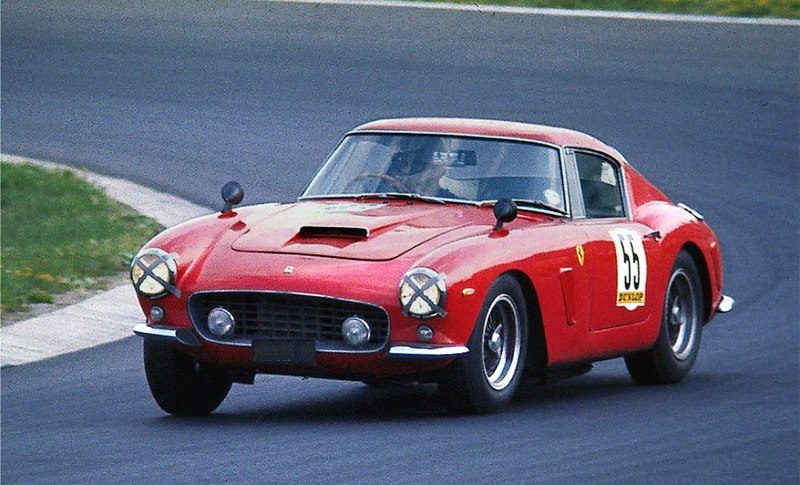

Ferrari 250 GT Berlinetta Passo Corto – 1959

ENGINE

Engine Typefront, longitudinal V12
Total Displacement2953.21 cc
Unitary Displacement246.10 cc
Maximum Power206 kW (280hp) at 7000 rpm
Bore/Stroke73 X 58.8 mm
Compression ratio9.2 : 1
Power Per Litre95 hp/l
Valve Actuationsingle overhead camshaft per bank, two valves per cylinder
Fuel feedthree weber 40 DCL/6 carburettors
Ignitionsingle spark plug per cylinder, two coils
Lubricationwet sump
Clutchsingle-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs, hydraulic shock absorbers.
Rear Suspensionlive axle, radius arms, semi elliptic springs, telescopic shock absorbers.
BrakesDrums
Transmission4-speed + reverse
SteeringWorm and Sector
Fuel Tank120 litres
Front tyres6.0 X 16 or 175 X 400
Rear tyres6.0 X 16 or 175 X 400

BODYWORK

Typetwo-seater, berlinetta
Length-
Width-
Height-
Wheelbase2400 mm
Front Track1354 mm
Rear Track1349 mm
Weight960 kg (dry)

PERFORMANCE

Top Speed268 km/h
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
