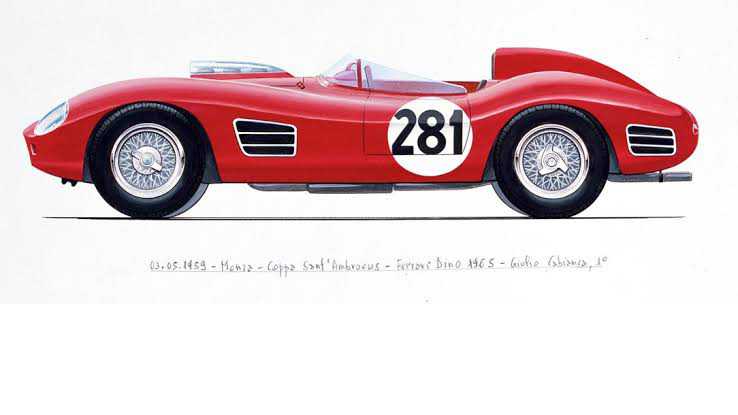

Ferrari Dino 196 S – 1958

ENGINE

Engine Typefront, longitudinal V6
Total Displacement1983.72 cc
Unitary Displacement330.62 cc
Maximum Power143 kW (195 hp) at 7200 rpm
Bore/Stroke77 X 71 mm
Compression ratio9.8 : 1
Power Per Litre98 hp/l
Valve Actuationtwin overhead camshaft per bank, two valves per cylinder
Fuel feedthree weber 42 DCN carburettors
Ignitiontwo spark plugs per cylinder, two magnetos
Lubricationdry sump
Clutchmulti-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil springs, hydraulic shock absorbers, anti-roll bars
Rear Suspensionlive axle, coil springs, hydraulic shock absorbers
BrakesDrums
Transmission4-speed + reverse
SteeringWorm and Sector
Fuel Tank130 litres
Front tyres5.50 X 16
Rear tyres6.50 X 16

BODYWORK

Typetwo-seater, spider
Length-
Width-
Height-
Wheelbase2220 mm
Front Track1240 mm
Rear Track1200 mm
Weight-

PERFORMANCE

Top Speed250 km/h
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
