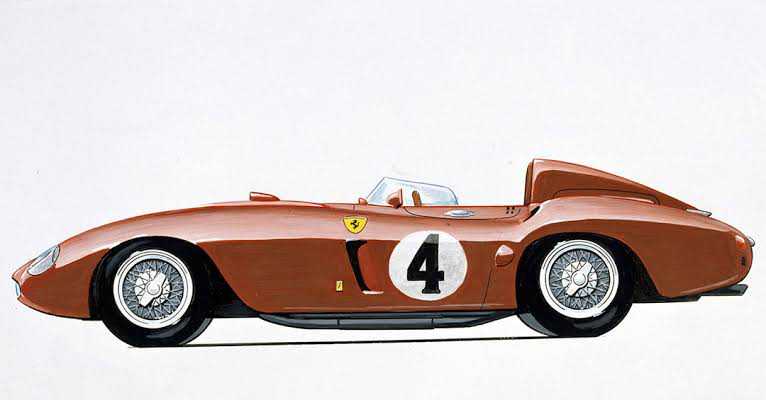

Ferrari 735 LM – 1955

ENGINE

Engine TypeFront, Longitudinal, in-line six
Total Displacement4412.49 cc
Unitary Displacement735.41 cc
Maximum Power243 kW (330hp) at 5800 rpm
Bore/Stroke102 X 90 mm
Compression ratio8.5 : 1
Power Per Litre75 hp/l
Valve ActuationTwin overhead camshaft per bank, two valves per cylinder
Fuel feedthree Weber 50 DCOA/3 carburettors
IgnitionTwin spark plug per cylinder, two coils
Lubricationdry sump
Clutchmulti-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, coil spring, hydraulic shock absorbers
Rear SuspensionDe Dion, twin radius arms, lower transverse leaf spring, Houdaille hydraulic shock absorbers
BrakesDrums
Transmission5-speed + reverse
SteeringWorm and Sector
Fuel Tank150 litres
Front tyres6 X 16
Rear tyres7.50 X 16

BODYWORK

TypeTwo-seater, spider
Length-
Width-
Height-
Wheelbase2400 mm
Front Track1316 mm
Rear Track1284 mm
Weight850 kg (dry)

PERFORMANCE

Top Speed280 km/h
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
