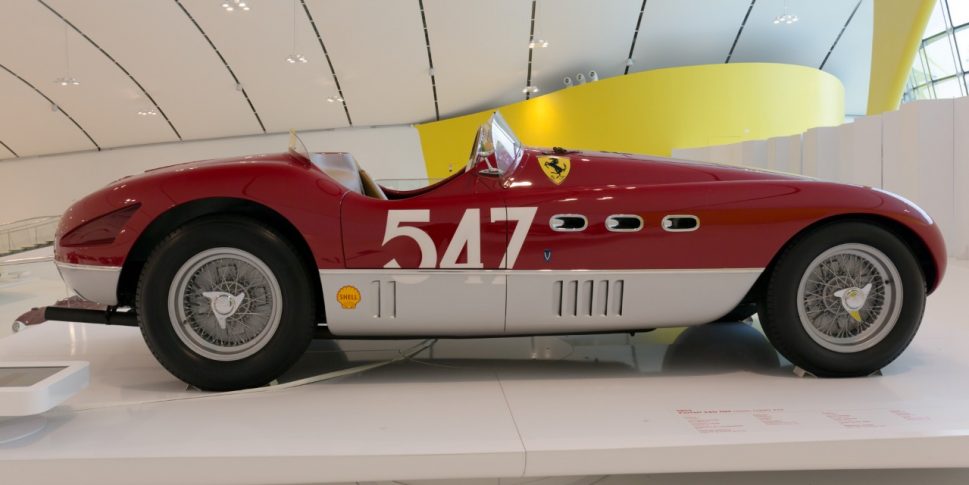

Ferrari 340 MM – 1953

ENGINE

Engine TypeV12
Total Displacement4101.66 cccc
Unitary Displacement341.80 cc
Maximum Power206 kW (280hp) at 6600 rpm
Bore/Stroke80 X 68
Compression ratio8 : 1
Power Per Litre68 hp/l
Valve ActuationSingle overhead camshaft per bank, two valves per cylinder
Fuel feedthree Weber 40 DCF Carburettors
IgnitionSingle spark plug per cylinder, two magnetos
Lubricationwet sump
Clutchmulti-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, transverse leaf spring,hydraulic shock absorbers.
Rear SuspensionLive axle, twin radius arm, semi-elliptic springs, hydraulic shock absorbers
BrakesDrums
Transmission5-speed + reverse
SteeringWorm and Sector
Fuel Tank177 litres
Front tyres5.50 X 16
Rear tyres6.50 X 16

BODYWORK

TypeTwo-seater berlinetta, spider
Length-
Width-
Height-
Wheelbase2500 mm
Front Track1325 mm
Rear Track1320 mm
Weight850 kg (dry, Spider)

PERFORMANCE

Top Speed282 km/h
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
