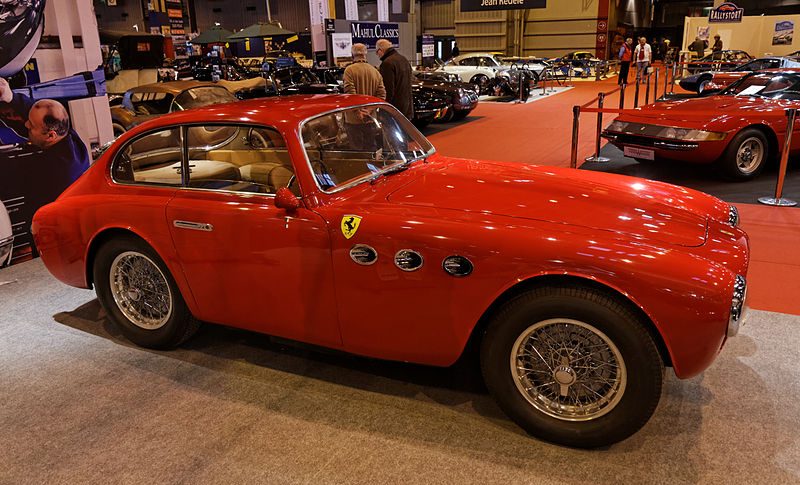

Ferrari 225 S – 1952

ENGINE

Engine TypeV12
Total Displacement2715.46 cc
Unitary Displacement226.28 cc
Maximum Power154 kW (210 hp) at 7200 rpm
Bore/Stroke70 X 58.8 mm
Compression ratio8.5 : 1
Power Per Litre77 hp/l
Valve ActuationSingle overhead camshaft per bank, two valves per cylinder
Fuel feedthree Weber 36 DCF carburettors
IgnitionSingle spark plug per cylinder, two coils
Lubricationwet sump
Clutchsingle-plate

CHASSIS

FrameTubular steel
Front SuspensionIndependent, unequal-length wishbones, transverse leaf spring, hydraulic shock absorbers
Rear SuspensionLive axle, twin semi-elliptic springs, hydraulic shock absorbers,
BrakesDrums
Transmission5-speed + reverse
SteeringWorm and Sector
Fuel Tank-
Front tyres5.50 X 16
Rear tyres6 X 16

BODYWORK

TypeTwo-seater berlinetta, spider
Length-
Width-
Height-
Wheelbase2250 mm
Front Track1278 mm
Rear Track1250 mm
Weight850 kg (dry)

PERFORMANCE

Top Speed230 km/h
Acceleration 0-100 KM/H-
0-400 M-
0-1000 M-
